2nd Generation Intel? Xeon? Scalable Family Ready
GIGABYTE’s servers are fully ready to support the second generation of Intel? Xeon? Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:
Intel? Optane? DC Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology
Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities
Intel? Xeon? Scalable Family Processors
GIGABYTE’s Intel? Xeon? Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.
* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information
Advanced features built into the silicon include:
Intel? QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).
Intel? AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput
increases for advanced analytics, high performance computing (HPC) applications, and data compression.
Intel? VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And GIGABYTE Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.
Intel? Omni-Path: Selected GIGABYTE servers support CPU SKUs with integrated Intel Omni-Path Fabric connection
| Compute | |
| Up to 28 cores / 56 threads per socket | Up to 38.5 MB L3 cache (non-inclusive) |
| Up to 3x UPI socket interconnects @ 10.4 GT/s | CPU TDP 70W – 205W |
| Memory | |
| 6 channels, 2 DIMMs per channel | Up to 12 DIMMS per socket |
| Up to 2933MHz max memory speed | Up to 2933MHz max memory speed |
| I/O | |
| 48 PCIe 3.0 lanes per socket | |

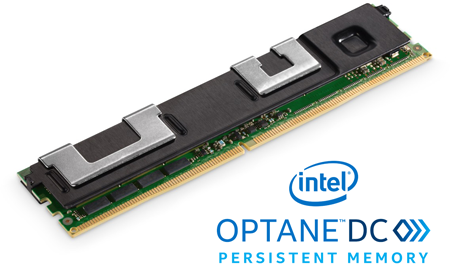

Intel? Optane? DC Persistent Memory Ready
GIGABYTE’s second generation Intel? Xeon? Scalable family servers come ready to support Intel Optane DC Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.

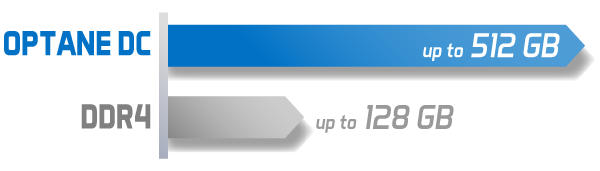

Optane DC Persistent Memory Modules (“DCPMM”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).
Note: the maximum number of DCPMM that can be installed per system and the DIMM slot positions that can be used for DCPMM will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.
Intel? VROC Enabled
This server product is enabled for Intel VROC (Virtual RAID on CPU) to enable software RAID on connected NVMe SSDs, and ships with a VROC key as standard*
* Intel SSD Only VROC Key

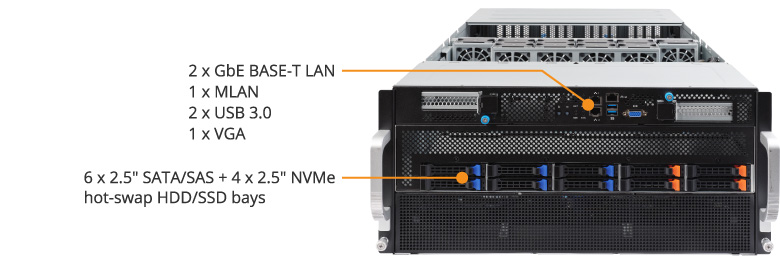

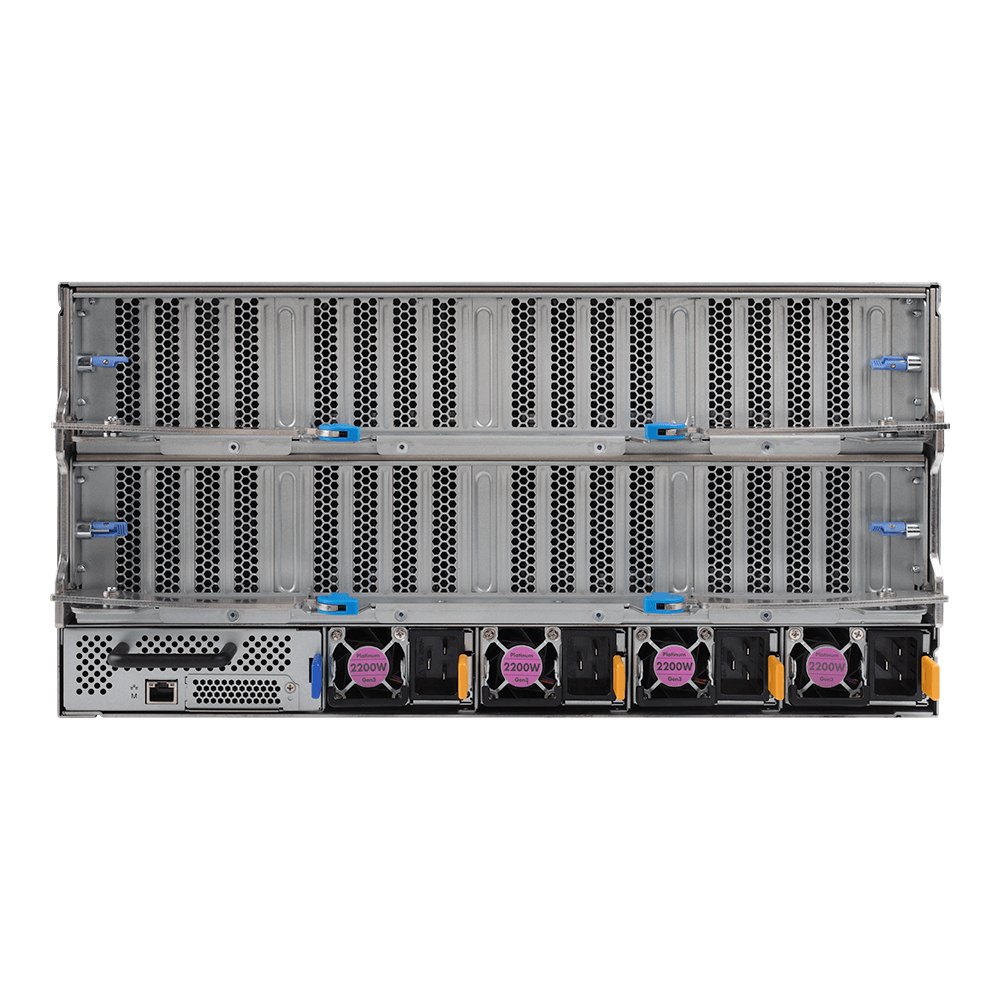

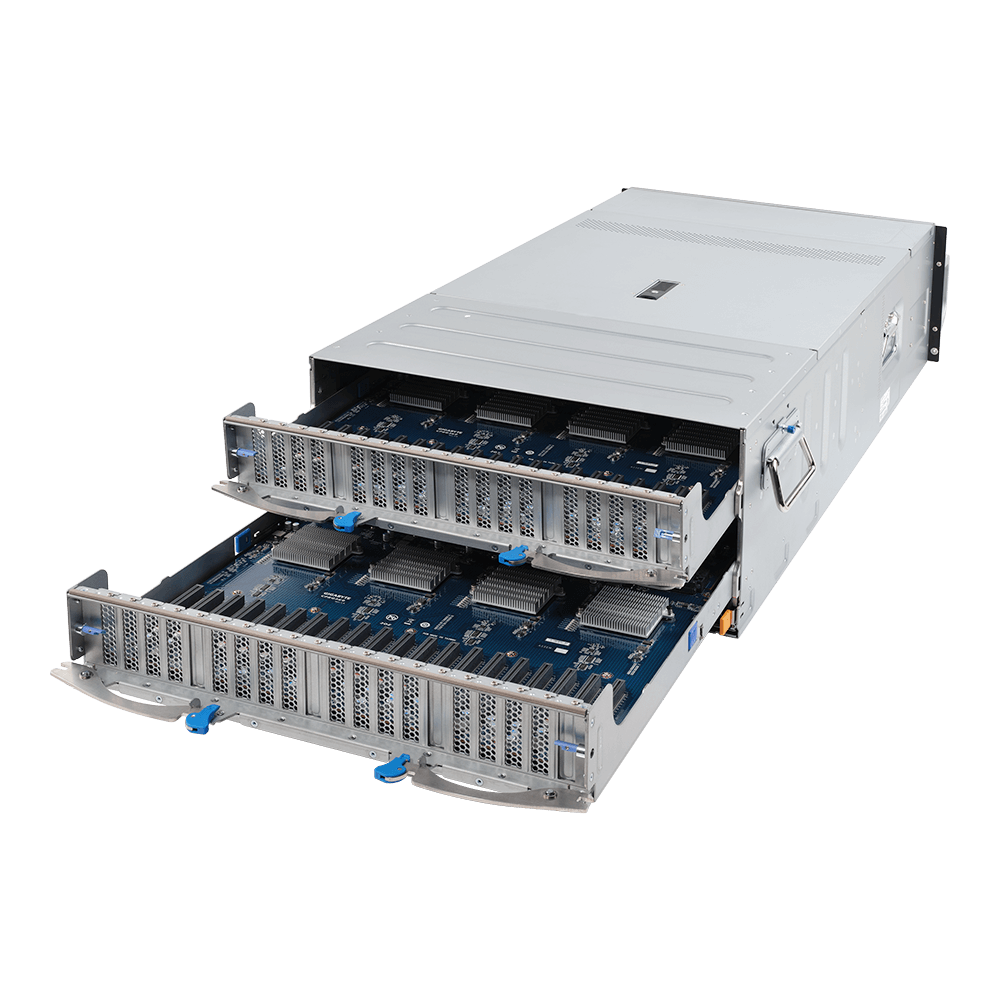

G591-HS0 Product Overview
G591-HS0 System Block Diagram
Optimized for High TDP
GIGABYTE systems are thermally designed with the highest rated CPU SKUs in mind so that top performance is enabled which ever Xeon Scalable CPU you choose.
Carefully Selected Components
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
Ease of Deployment and Management
GIGABYTE continues to be responsive to market needs and to create user-friendly solutions, including:

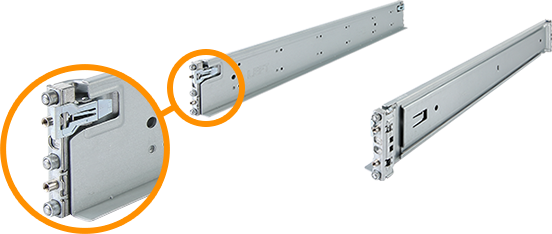

Tool-less rail kit included as a default across all new server models
Supplying multiple connector options and tools where appropriate
Efficient, Reliable Power Supply
GIGABYTE SERVER Xeon Scalable servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
GIGABYTE Server Management (GSM) GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs: GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC. *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware. Intuitive & Informative User Interface Node connection status (system is online/offline) Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature Node usage rate status (allowing you to timely allocate more resources when they are needed), including: Power consumption Disk/RAID usage information Memory usage rate CPU usage rate Network card / PCI information GIGABYTE Management Console GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use. RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management Including HTML5 based iKVM remote management client, no need to purchase other additional licenses Detailed FRU information from SMBIOS 10 to 30 seconds pre-event automatic recording function SAS / RAID controller monitoring function Dynamic Fan Speed Control GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements. * Enabled on selected models & performed through BMC console management GUI Environmental Compliance GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017). VMware Technology Alliance Partner Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.
Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:
